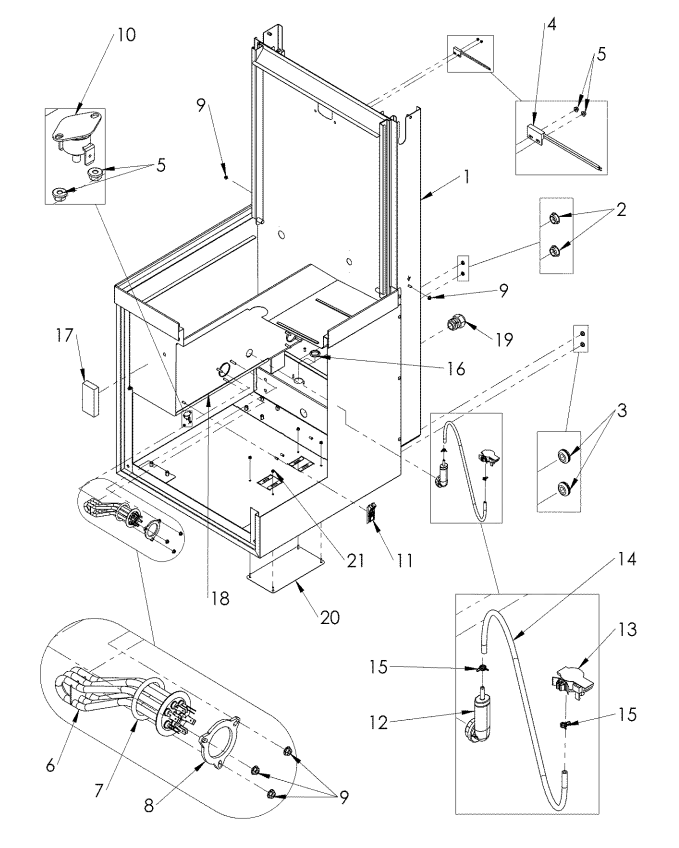

Base assembly P500A

Name: Base assembly P500A
SKU: P500A-front-panel-assy-1
Availability: InStock

In stock
Nationwide Delivery

Price range: £0.50 through £99.15

1	Not available as a spare Part No. n/a	Not available as a spare quantity	£0.00 Exc. VAT
2	Plastic cap Part No. 30002143	Plastic cap quantity	£0.42 Exc. VAT
3	Chemical tube grommet Part No. 30002141	Chemical tube grommet quantity	£4.69 Exc. VAT
4	Door switch Part No. 30000980	Door switch quantity	£16.18 Exc. VAT
5	M3 Flange nut (DIN 6923) Part No. 30001171	M3 Flange nut (DIN 6923) quantity	£1.22 Exc. VAT
6	Wash Element - 4.05KW No Phile PT Part No. 30013218	Wash Element - 4.05KW No Phile PT quantity	£36.19 Exc. VAT
7	Element O ring 6mm X 45mm Part No. 30000947	Element O ring 6mm X 45mm quantity	£4.50 Exc. VAT
8	Clamping Bracket - rinse element Part No. 117003	Clamping Bracket - rinse element quantity	£10.33 Exc. VAT
9	M5 nut - Flange Part No. 30001186	M5 nut - Flange quantity	£0.18 Exc. VAT
10	Overheat stat 1 Pole 85°C Part No. 30007917	Overheat stat 1 Pole 85°C quantity	£7.74 Exc. VAT
11	Thermal sensor kit Part No. 30002179	Thermal sensor kit quantity	£45.62 Exc. VAT
12	Air chamber assembly kit Part No. 60003525	Air chamber assembly kit quantity	£32.67 Exc. VAT
13	Pressure sensor Part No. 3126044	Pressure sensor quantity	£70.79 Exc. VAT
14	Hose Wash APS Tube UC350/PT Part No. 30014329	Hose Wash APS Tube UC350/PT quantity	£4.21 Exc. VAT
15	Spring clip - Ø8.8mm to Ø9.3mm Part No. 30011994	Spring clip - Ø8.8mm to Ø9.3mm quantity	£0.36 Exc. VAT
16	Blanking grommet 28mm PT 2020 Part No. 30014828	Blanking grommet 28mm PT 2020 quantity	£3.44 Exc. VAT
17	Foam Pad - P500A Part No. 30013499	Foam Pad - P500A quantity	£1.27 Exc. VAT
18	350mm Foam seal Part No. 30011634	350mm Foam seal quantity	£1.53 Exc. VAT
19	Cable Gland Part No. 3110153	Cable Gland quantity	£4.07 Exc. VAT
20	Vermin plate Part No. 30001836	Vermin plate quantity	£20.52 Exc. VAT
21	M4 Flange nut (DIN 6923) Part No. 30006237	M4 Flange nut (DIN 6923) quantity	£0.56 Exc. VAT

Specifications

Specifications

Brand	Classeq
